SPAN offers several different panel: SPAN Panel MAIN 32, SPAN Panel MAIN 40, and SPAN Panel MLO 48. If you are uncertain which panel you own, you can generally determine this based on the number of breaker slot spaces in the panel, the panel serial number, or the number of breaker slots in the SPAN Home App.
SPAN Panel MAIN 32
Physical Identification
This panel has 32 breaker slots in the physical panel, which can be seen simply by opening the panel door. You’ll also find a label with a QR code and a serial number (will be on the inside door or upper left hand corner of the panel) that either reads NJ-XXXX-XXXXX or NT-XXXX-XXXXX:
Home App Identification
You can also verify this information in the SPAN Home App. If you click “Circuits” followed by “In Panel” and scroll to the very bottom of the screen, you’ll see a total of 32 breaker spaces:
You can also go to “Settings” and then “All Settings” and scroll down to “Software ad Serials” and you’ll see the serial number listed there as well, starting with NT or NJ, as stated above.
SPAN Panel MAIN 40
Physical Identification

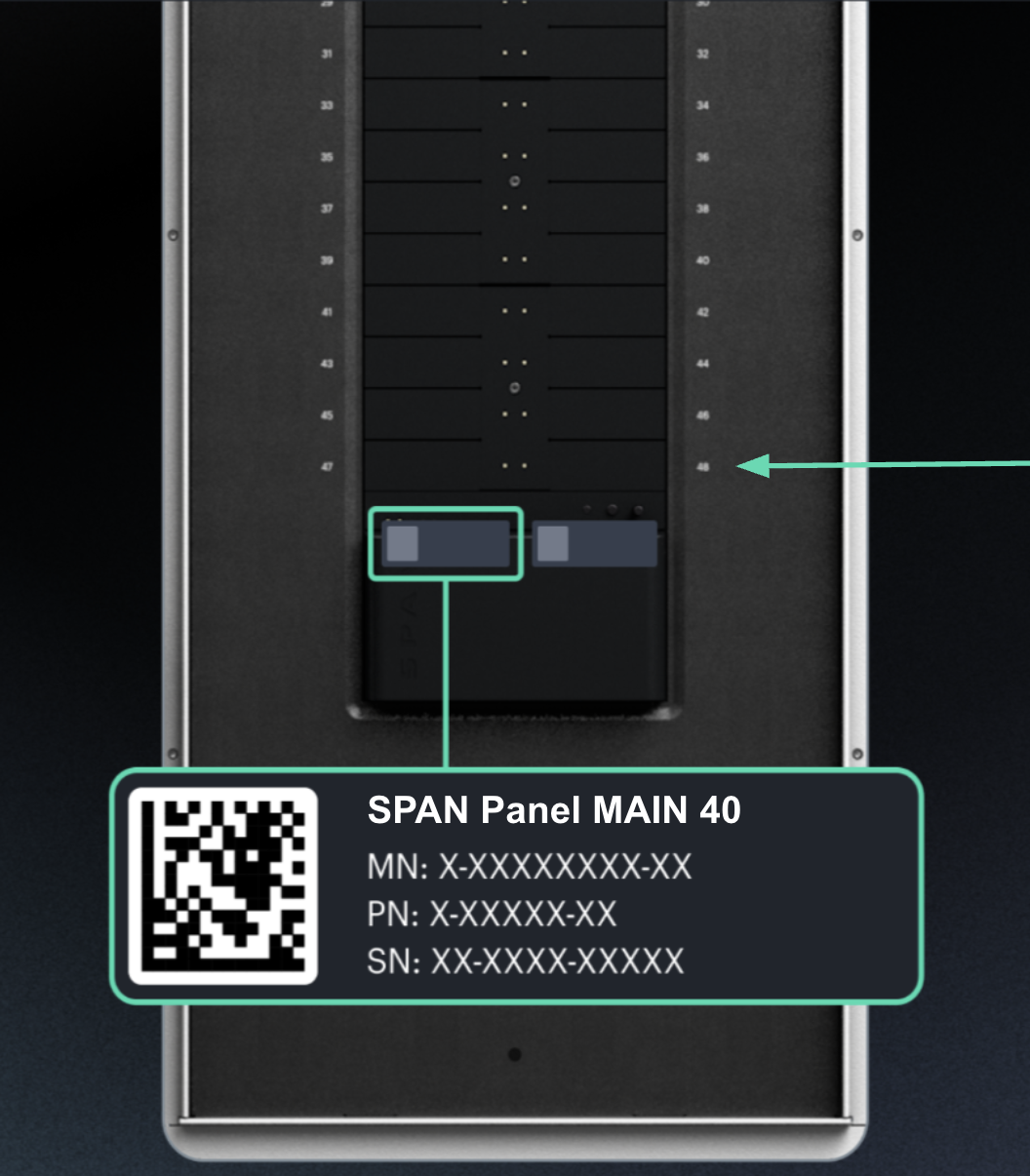

This panel has 40 breaker slots in the physical panel, which can be seen simply by opening the panel door. You’ll also see a label at the base of the breaker slots that will show that the panel is “SPAN 40.” You’ll also see a secondary label, titled SPAN Panel Controller, with a serial number that reads: XG-XXXX-XXXXX.
Home App Identification

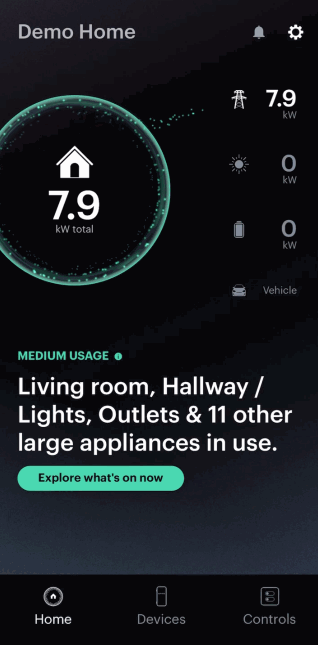

You can also verify this information in the SPAN Home App. If you click “Controls” followed by “Panel control” and scroll to the very bottom of the screen. You’ll see that even if you have empty breaker spaces, the total number is 40:
You can also click the gear symbol in the upper right corner of the “Home“ screen to be brought to “Settings“ and then click “Device serial and version.” You’ll see the serial number listed here starting with XG, as stated above.
SPAN Panel MLO 48
Physical Identification
This panel has 48 breaker slots in the physical panel, which can be seen simply by opening the panel door, similar to SPAN 40. You’ll also see two labels at the base of the breaker slots and one will specifically read “SPAN 48.” On the SPAN Panel Controller label, you’ll also find a serial number that reads: XG-XXXX-XXXXX.
Home App Identification
You can also verify this information in the SPAN Home App. If you click “Controls” followed by “Panel control” and scroll to the very bottom of the screen. You’ll see that even if you have empty breaker spaces, the total number is 48.
You can also click the gear symbol in the upper right corner of the “Home“ screen to be brought to “Settings“ and then click “Device serial and version.” You’ll see the serial number listed here starting with XG, as stated above.
